CART-X03M
Electric Roof Lift System with Manual Override for Heavy-duty Camper Roofs
The X03M Electric Pop-top Roof Lift System is specifically engineered for heavy-duty camper roofs requiring higher lifting capacity and enhanced operational reliability.
Designed for roof loads ranging from 70 kg to 100 kg, the X03M provides smooth and synchronized lifting while maintaining a compact installation profile. Compared with conventional roof lifting systems, it delivers significantly higher lifting force, making it suitable for camper roofs carrying roof racks, solar panels, kayaks, cargo boxes, or other additional equipment.
The integrated manual override ensures the roof can still be operated safely during power failure, improving reliability for outdoor travel and emergency situations.
Powered by a 12 VDC system and controlled by the H18 intelligent controller, the X03M offers synchronized operation, obstacle detection, overcurrent protection, and voltage monitoring to ensure safe and stable performance.
Contact us
Parameters

  • Main features：Open and close pop-up roofs electrically and manually, designed for heavy-duty roofs with advanced drop control.

  • Rated Roof Load：70–100 kg

  • Max lifting height：965mm ±10

  • Lifting time：20–25s

  • Net Lift Height：875mm ±10

  • Installation width：55mm ±3

  • Closing height：≤ 90mm

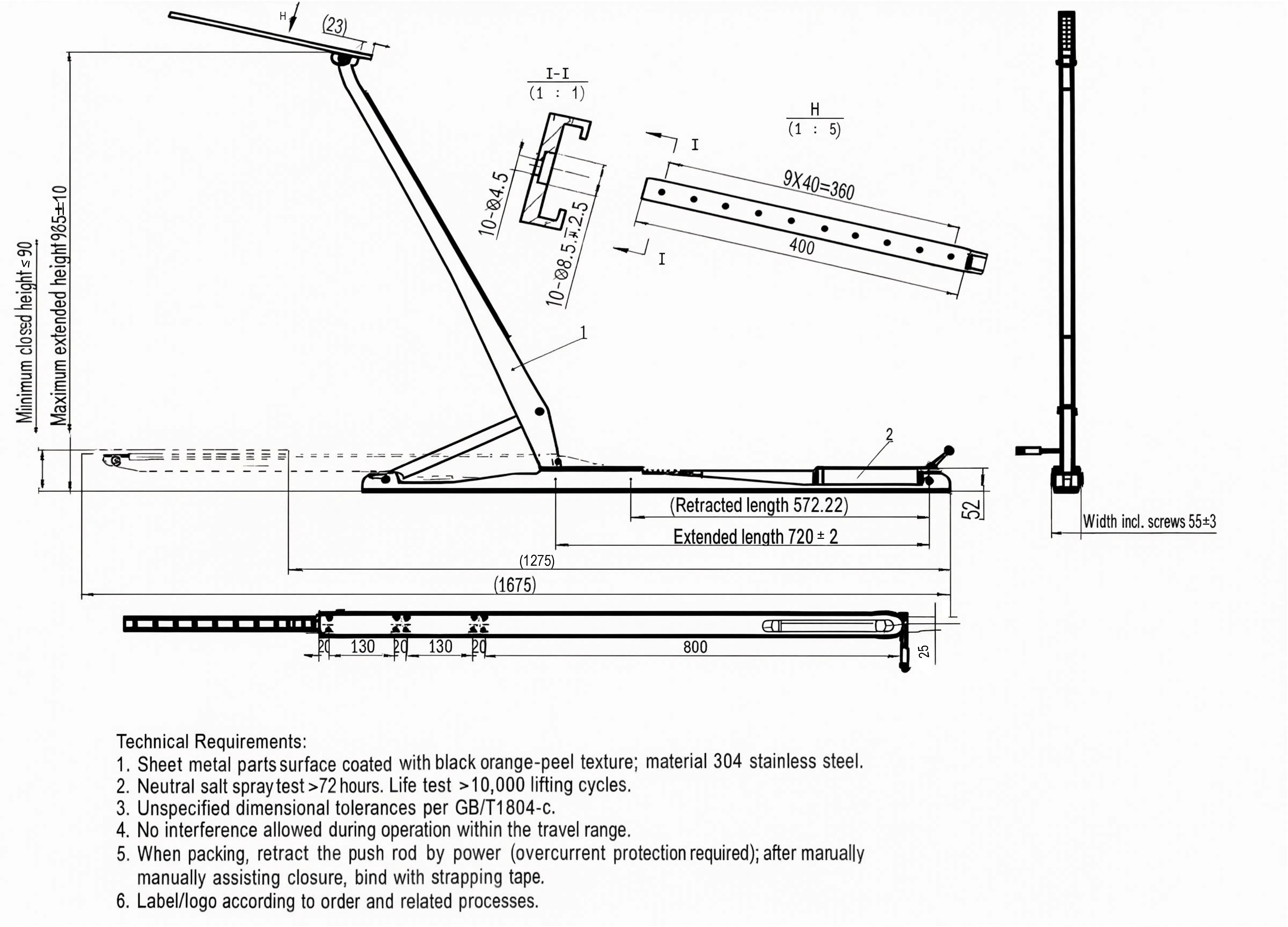

Drawing Dimensions

X03M dimension drawing.jpg
