CART-ERL-P05

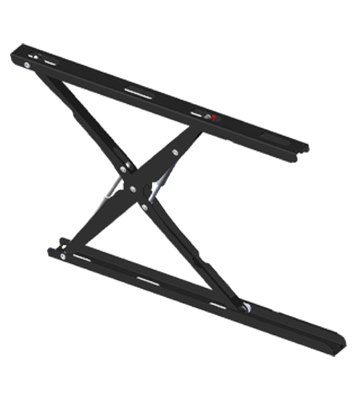

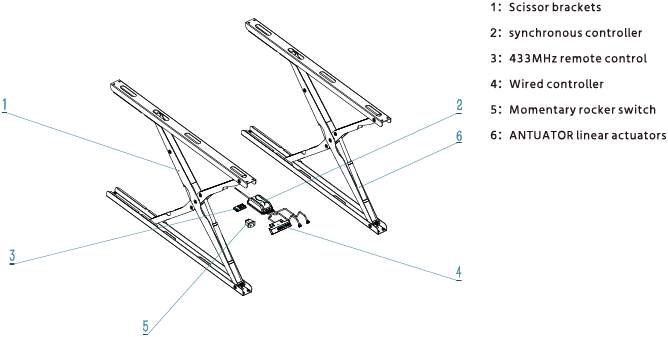

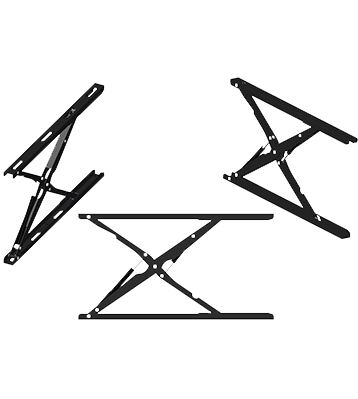

aluminum/stainless steel ANT-35*2, Scissor brackets*2(304 stainless steel with black power coated on surface), Synchronous controller*1, 433MHz remote control*1,Wired controller*1,Momentary rocker switch*1
Parameters
  • Main features:Open and close the pop up roofs automatically with one click.

  • Max load capacity:100 KG

  • Max Lifting height:750 mm

  • Lifting time:30 seconds

  • System installation length:1300 mm

  • System width:75 mm

  • System closing height:100 mm

  • Customizable items:lifting height, load capacity

  • Applicable RV models:Camper van and truck camper

Drawing Dimensions

CART-ERL-P05(图1)

CART-ERL-P05(图2)
