Electric Pop-Top Actuator for Heavy-Duty Camper Vans | CART-X03M
With the rapid rise of the Vanlife culture, camper vans are no longer just a means of transportation. They have evolved into mobile living spaces combining travel, camping, remote work, and daily life.
To maximize limited space, more and more outdoor enthusiasts and van owners are equipping their roofs with solar panels, roof platforms, luggage racks, kayaks, bike racks, and storage boxes. However, as roof loads increase, traditional pop-top roof systems face unprecedented challenges.
A heavy-duty pop-top roof demands more than just raw pushing force. It requires exceptional load capacity, precise synchronization, robust environmental adaptability, and seamless vehicle integration.
To solve these pain points for RV manufacturers and OEM clients, CARTUATOR (the dedicated RV lifting system brand under ANTUATOR) officially introduces the CART-X03M Heavy-Duty Pop-Top Electric Lifting System.
Upgrading a pop-top roof with heavy gear adds significant weight and alters the vehicle's center of gravity. Compared to standard pop-top roofs, heavy-duty setups place stricter demands on structural design and drive control:
Synchronized & Smooth Operation: Uneven load distribution can lead to frame tilting, mechanism jamming, or wear. A mature system must keep both sides perfectly synchronized.
All-Weather Reliability: Camper vans endure long-distance travel, bumpy roads, extreme temperatures, and harsh weather. The drive system must remain stable under various road conditions.
System Redundancy & Safety: An intelligent electric system must incorporate manual emergency overrides to prevent users from getting stranded during power outages or extreme off-road scenarios.
Therefore, a truly exceptional pop-top system does not merely open and close a roof—it provides a comprehensive solution through integrated structural design, intelligent control, and safety redundancy.

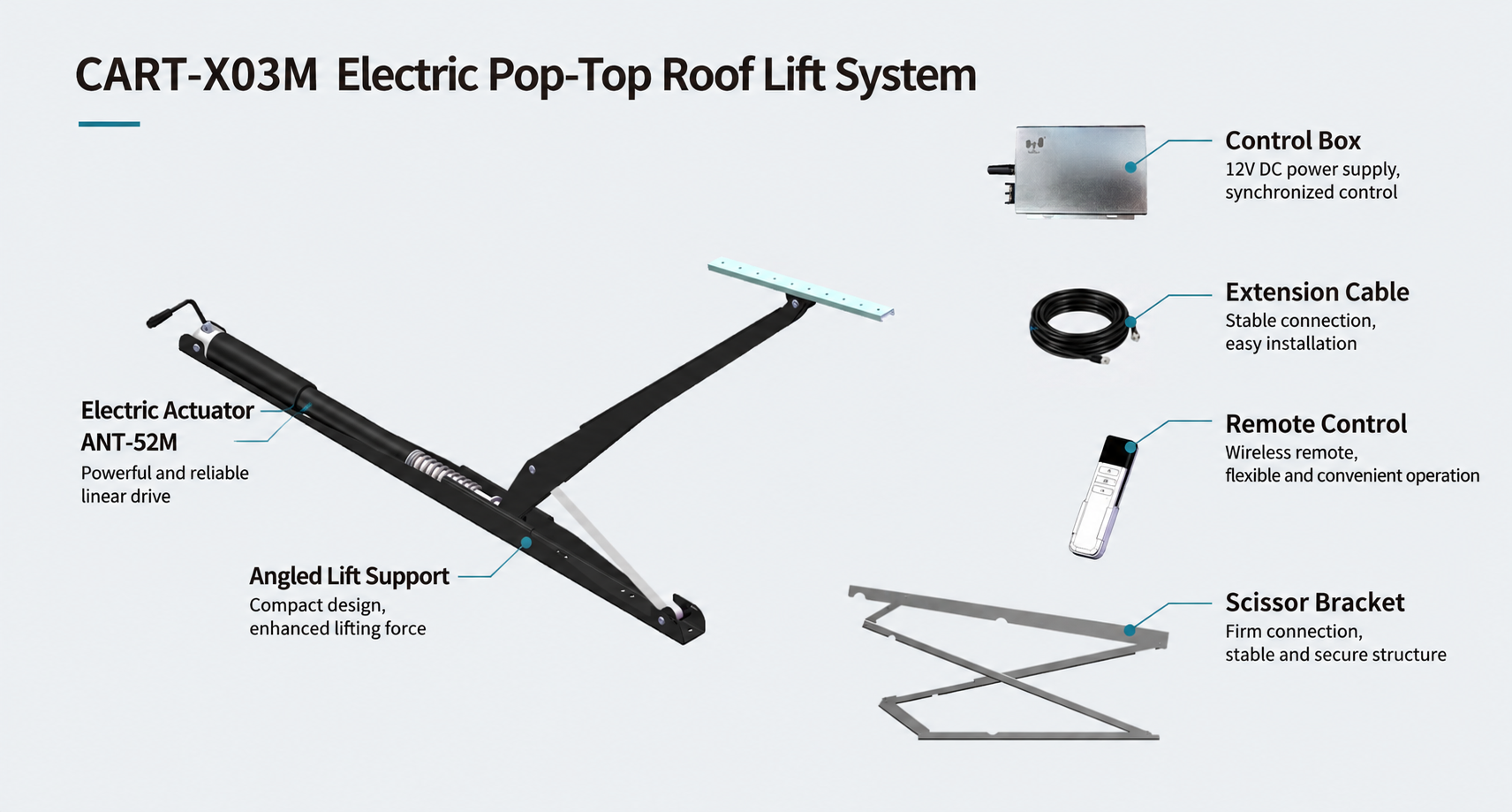

Backed by years of R&D in linear motion technology, CARTUATOR developed the CART-X03M, specifically tailored for high-load slanted pop-top roofs.
[ Compact Size: ≤90mm Height ] ──► [ Max Lifting Height: 965mm±10 ]
[ Load Capacity: 70–100kg ] ──► [ Manual Emergency Override ]
Specially engineered to handle 70–100kg of additional roof equipment. Whether your van is mounted with heavy solar arrays, roof racks, or adventure gear, the X03M delivers smooth, effortless, and synchronized lifting performance every time.
Closed Height: $\le 90\text{ mm}$
Installation Width: Only $55 \pm 3\text{ mm}$
Maximum Pop-Top Height: Reaches up to $965 \pm 10\text{ mm}$
This ultra-compact footprint allows easy structural integration while providing nearly 1 meter of vertical clearance for the tent, creating a spacious and comfortable interior standing/sleeping room.
We understand that every RV build is unique. The CART-X03M system supports customized development—including mounting dimensions, stroke length, pop-top height, and system configurations—giving RV manufacturers max flexibility during vehicle integration.
In addition to convenient one-touch electric operation, the X03M features a built-in manual emergency operation mechanism. If the vehicle loses power or faces electrical issues in the wild, users can still safely open or close the roof manually.
Paired with CARTUATOR’s smart control unit, the system offers features such as dual-actuator synchronized running, over-current protection, and real-time voltage monitoring, ensuring long-term stable and safe operation.
For RV manufacturers, a superior pop-top system means faster OEM integration, lower warranty risks, and better end-user satisfaction.
Relying on ANTUATOR’s deep expertise in linear actuators and motion control, CARTUATOR continues to expand its product matrix around real-world application scenarios. From linear actuators and intelligent control boxes to complete pop-top platforms, we deliver reliable, easy-to-integrate, and intelligent solutions to global RV builders.
A: The CART-X03M is engineered for heavy-duty slanted pop-top roofs with an additional gear load capacity ranging from 70kg to 100kg, making it ideal for vans mounted with solar panels, luggage boxes, and roof racks.
A: Yes. CARTUATOR offers OEM/ODM customization services. Installation dimensions, lifting stroke, pop-top height, and control features can be tailored according to specific vehicle requirements.
A: The CART-X03M includes a built-in manual emergency override function. Users can manually operate and retract the roof safely even during total power failure.
Looking to upgrade your camper van pop-top solution?
